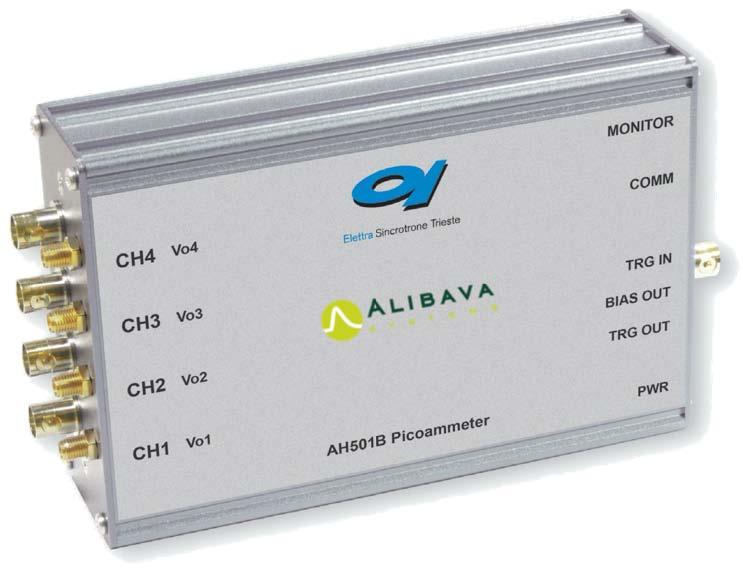

Picoammeter
| HIGHLIGHTS |
FEATURES BENEFITS
Especially suited for applications where multi-channel fast acquisition is a concern, i.e. feedback systems | |
| This device performs current measurement from ±2.5 nA (with a resolution of 298 aA) up to ±11 mA (resolution of 1.35 nA) with sampling frequencies of up to 26 kHz (for 1 channel and a 16-bit resolution) and 6.5 kHz (4 channels, 16 bit/sample) | Extremely low current measurements Bipolar current measurements |
| Housed in a light and extremely compact box | Can be placed close to the signal sources in order to reduce cable lengths and minimize possible noise pick-up |
| Low temperature drifts, good linearity and very low noise | High-precision current measurements |
| Modular communication capability | Allows the user to freely select the type of communication interface, allowing control of the instrument with different types of programming languages and/or operating systems |
| Buffered voltage monitors that are proportional to the measured input current | Allows direct analogue monitoring on the oscilloscope |
| High voltage (30 V) output | Detector biasing |
| APPLICATIONS |
|
|
|
|
This product is sold under license of Elettra Sincrotrone Trieste (Italy)
